Mn18Cr2 Cone Crusher Wear Parts Group Mantle And Bowl Liner Customized Combo
In heavy-duty aggregate production and mining operations, the performance of a cone crusher depends entirely on the harmony between its two primary wear components: the moving mantle and the stationary bowl liner. Sichuan Xinyitong International Trade Co., Ltd. delivers the ultimate wear protection with our premium Mn18Cr2 High-Manganese Mantle and Bowl Liner Matching Combo. Instead of replacing these parts individually with mismatched liners, choosing our factory-synchronized combination ensures your entire crushing chamber operates at absolute peak thermal and mechanical efficiency, drastically lowering your operational stress and unscheduled downtime.
Our matching sets are cast from a highly refined metallurgical alloy featuring 18% manganese enriched with a strategic 2% addition of chromium. This specific formulation is globally recognized as the gold standard for reducing high-hardness, highly abrasive geological materials such as massive iron ore, tough river pebbles, basalt, and granite. By providing a uniform, balanced wear rate across both the moving and stationary sides of the chamber, this high-manganese combo kit maximizes your processing throughput while offering an exceptionally long service life.
Balanced Work-Hardening for Extended Life Cycles
The core engineering advantage of our Mn18Cr2 combo kit is its uniform response to extreme compressive stress. When a cone crusher runs, raw boulders are violently squeezed between the mantle and bowl liner. If one part wears down faster than the other, the crushing cavity profile deforms, leading to poor rock gradation, localized friction, and premature component failure.
Our Mn18Cr2 alloy completely eliminates this issue through a synchronized work-hardening phenomenon. The moment high-impact forces contact the liners, the crystalline structure of their outer surfaces undergoes a rapid transformation, creating a diamond-hard outer protective shell. This hardened face successfully resists severe micro-cutting and scraping abrasion from sharp rock edges. Simultaneously, the internal core of both the mantle and bowl liner retains its highly dependable ductility and shock-absorbing toughness. This unique combination prevents the liners from cracking or snapping under sudden, extreme structural overloads. The 2% chromium addition further stabilizes these carbide structures, preventing premature warping or thinning, and extending the continuous service life of the entire kit by more than 30% compared to standard manganese sets.
World-Class Casting Craftsmanship at Our Foundry
At Sichuan Xinyitong International Trade Co., Ltd., we combine advanced metallurgy with strict industrial manufacturing protocols. Our specialized wear parts foundry utilizes a rigorous, five-step precision production sequence to guarantee that both components match flawlessly:

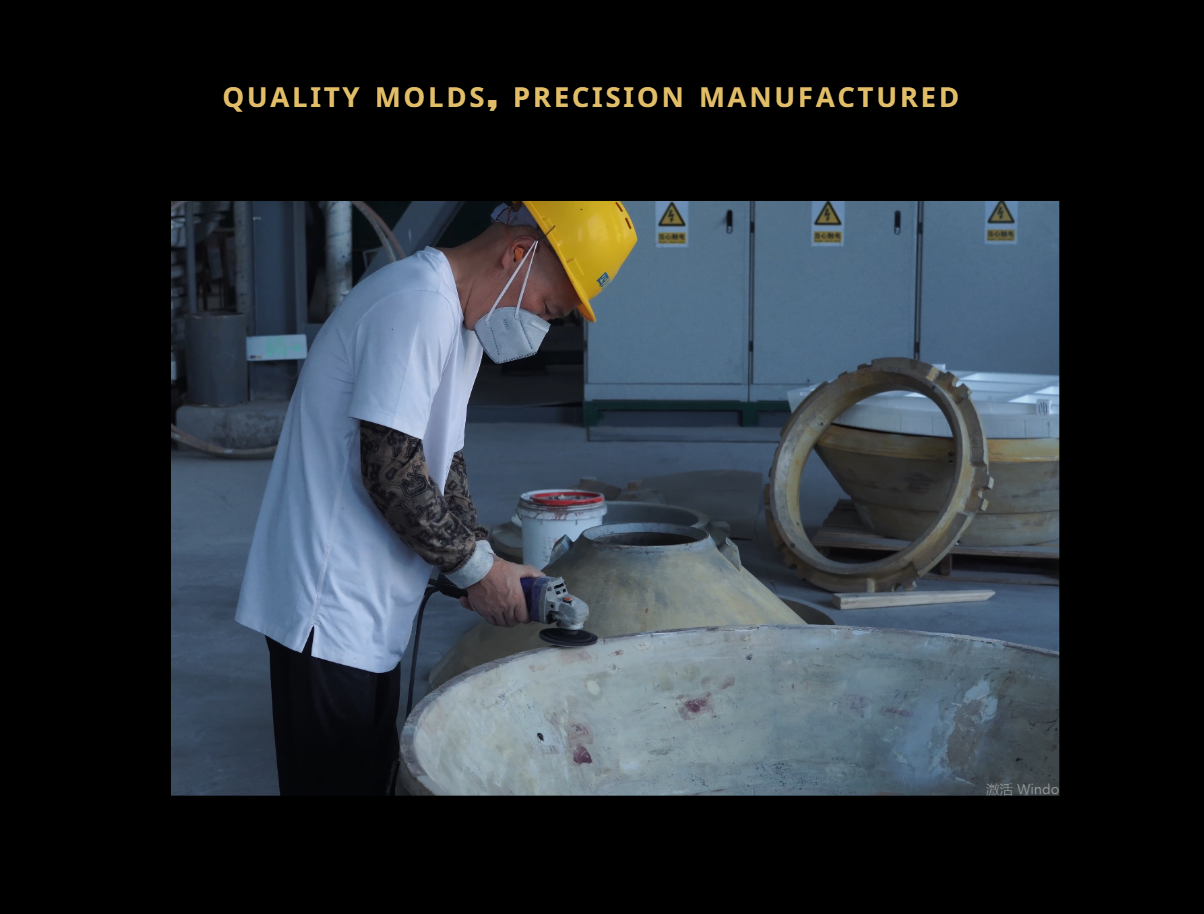

- Integrated Digital Tooling and Mold Design: Perfect synchronization starts on the drawing board. Our engineering division reviews precise OEM blueprints or custom customer schematics using advanced modeling software. These dimensions are transferred to high-precision machine tools, allowing our technicians to craft matching physical production molds with absolute dimensional fidelity.
- Resin-Bonded Sand Molding Technology: To ensure our molds survive the destructive, intense heat of molten high-manganese steel, we utilize an advanced sand molding process. We combine high-grade, thermally stable sand with custom binding resins to shape the precise casting cavities, ensuring the molds maintain their exact geometry during the high-volume pouring process.

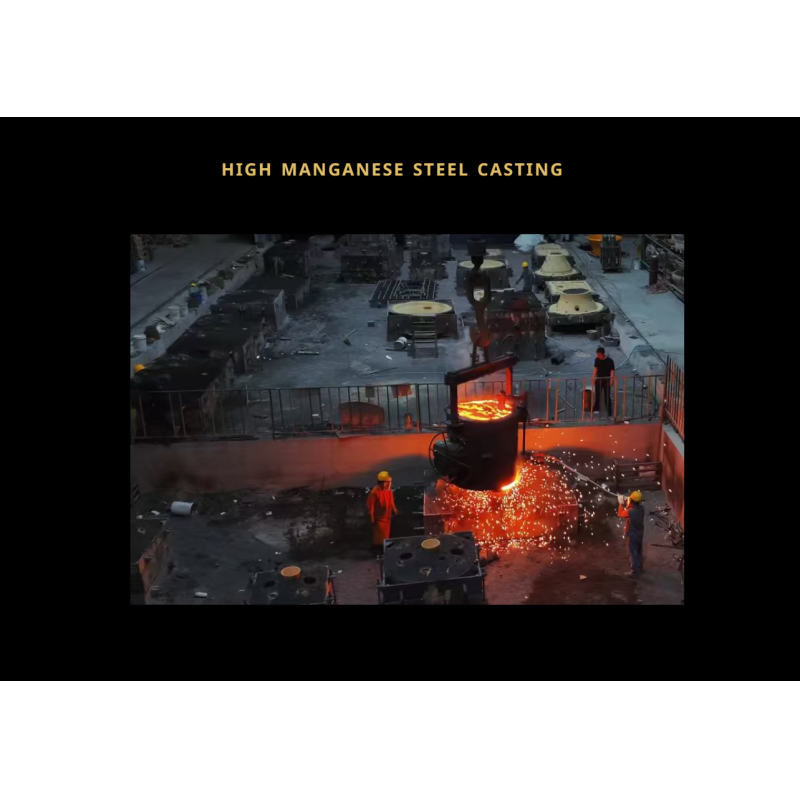

- 40-Hour Uniform Controlled Cooling: Once the molten alloy is successfully poured, the castings undergo a mandatory 40-hour slow-cooling cycle. Rushing this cooldown causes severe internal thermal stresses and structural brittleness. By enforcing a strict 40-hour uniform cooling timeline, we allow the metal to solidify evenly, completely eliminating hidden structural weak points across both large and small components.

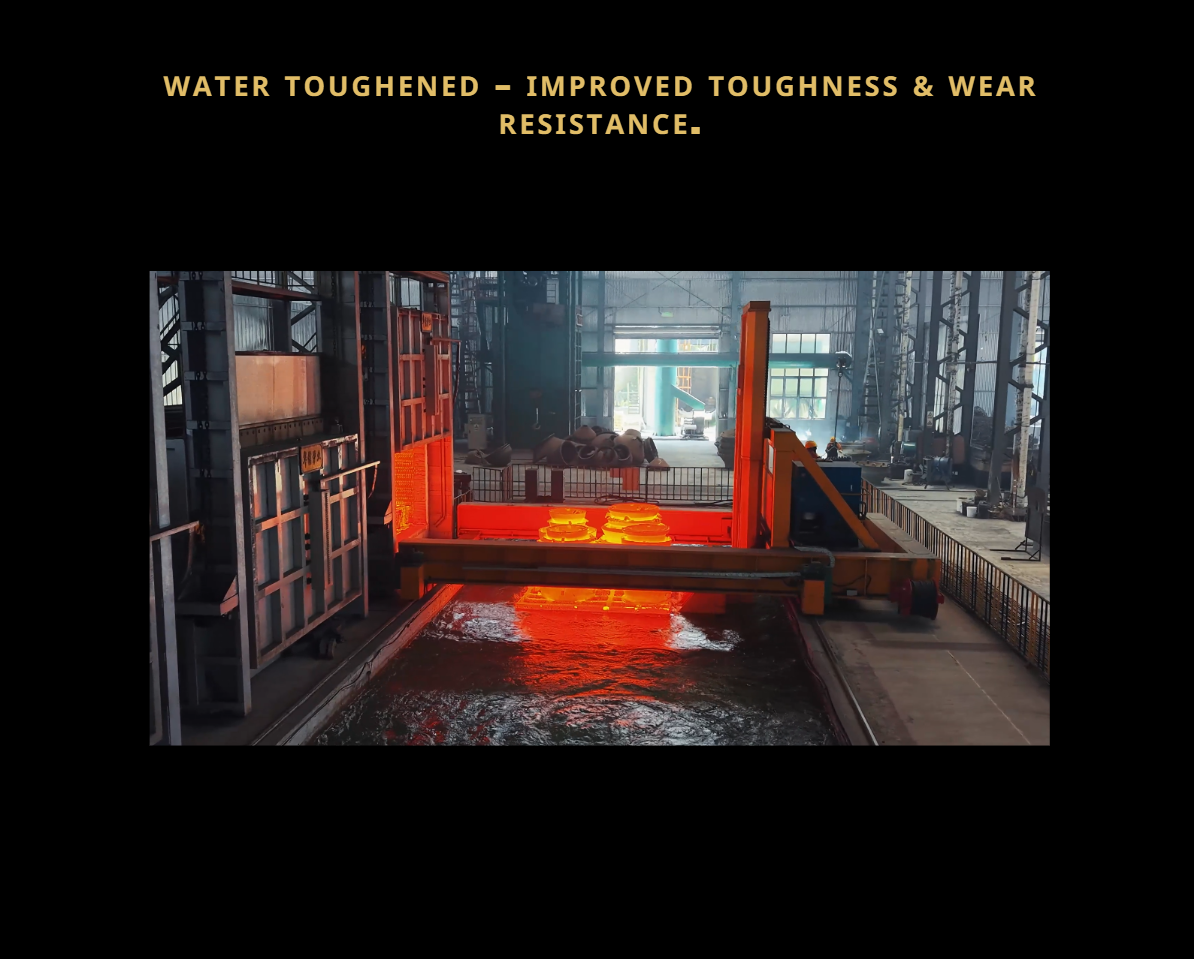

- Proprietary Water Toughening Heat Treatment: This represents the critical metallurgical phase within our facility. The cooled mantle and bowl liner are loaded into an automated heat-treatment furnace to reach exact high-temperature levels, followed immediately by rapid water quenching. This water-toughening technique locks the alloy into a pure austenitic state, providing the ultimate balance of high impact resistance and severe abrasion deflection.
- Aggressive Shot Blasting and Strict NDT Flaw Detection: In the final stage, both raw castings undergo intense shot blasting to completely remove surface scale, oxidation, and residual sand. This allows our Quality Assurance team to conduct comprehensive non-destructive testing (NDT), including ultrasonic and magnetic particle crack detection, ensuring that absolutely zero sub-surface defects or micro-fissures leave our facility.
